Of all the different types of equipment on a boat, certain things are vital, which includes the windlass. A windlass is used to make your sailing expeditions much easier, which is why it is important to own one.
What Is A Boat Windlass?

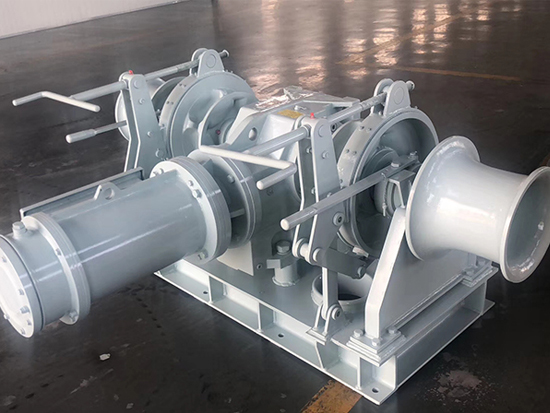

A windlass is a large winch that features a vertical or a horizontal axis. This equipment serves the purpose of dropping or raising your anchor easily, reliably, and quickly. A boat windlass is typically positioned at the foredeck on a boat and is driven with either a crank (manual windlass) or a motor (electric windlass).
These winches consist of two components, which includes the head and the gypsy. A gypsy is a notched-ring that is meshed with links present on the chain used to hoist an anchor. This part can rotate either on a horizontal or vertical axis. The smooth drum and head that is used to raise the rode (the textile part of an anchor). Both parts are operated by gears which increase the force. In the electric windlasses, the design includes a gear-motor.
Tips On How To Choose A Windlass For Your Boat
There are various factors to take into consideration before you choose a windlass. To begin with, it is important to determine the overall displacement (heavy or light) and the length of the boat to work out the dimensions of a windlass. Once you have completed this step, you can move onto comparing how much traction power is needed for the boat to the specified traction power of the windlass you are interested in.
The power of the windlass needs to be higher. To ensure safe sailing, make sure the overall traction capacity associated with a windlass is not less than at least 3 times the overall weight of your anchor line (anchor and the chain).
Should You Choose An Electric Or Manual Windlass?
When compared to the electric windlass, the manual versions are cheaper and lighter. It is effective to effortlessly raise heavy anchors, but the process is slower. This type of windlass is ideal for boats without an electric-charging system or a battery. However, if your boat can accommodate one of the electric winches, it is highly recommended to invest in one of these.

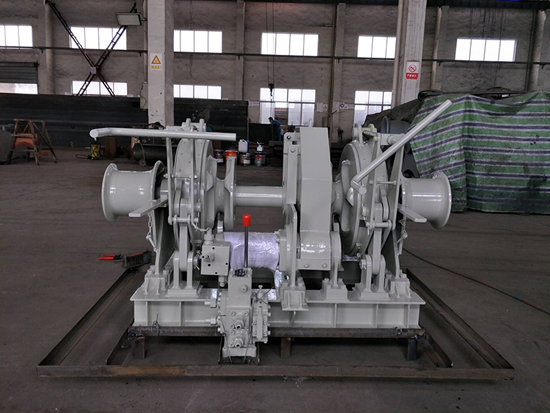

Electric winches also provide more safety and convenience. With an electric windlass, only one person is needed to raise or drop the anchor a lot faster. The anchor chain quantity is also more accurately controlled. One of the drawbacks with an electric windlass has to do with energy consumption which increases when weighing an anchor. Hydraulic energy is a better solution to operate a boat windlass.
Whether you decide on a vertical windlass or a horizontal windlass, this usually come down to the space available in your anchor and the bridge.
The drop height should also be taken into consideration. This is the length between the under part of your deck and the top of your chain bundle. The vertical or capstan windlass requires a minimum of a 40 cm drop height, while the horizontal windlass requires only 30 cm.
